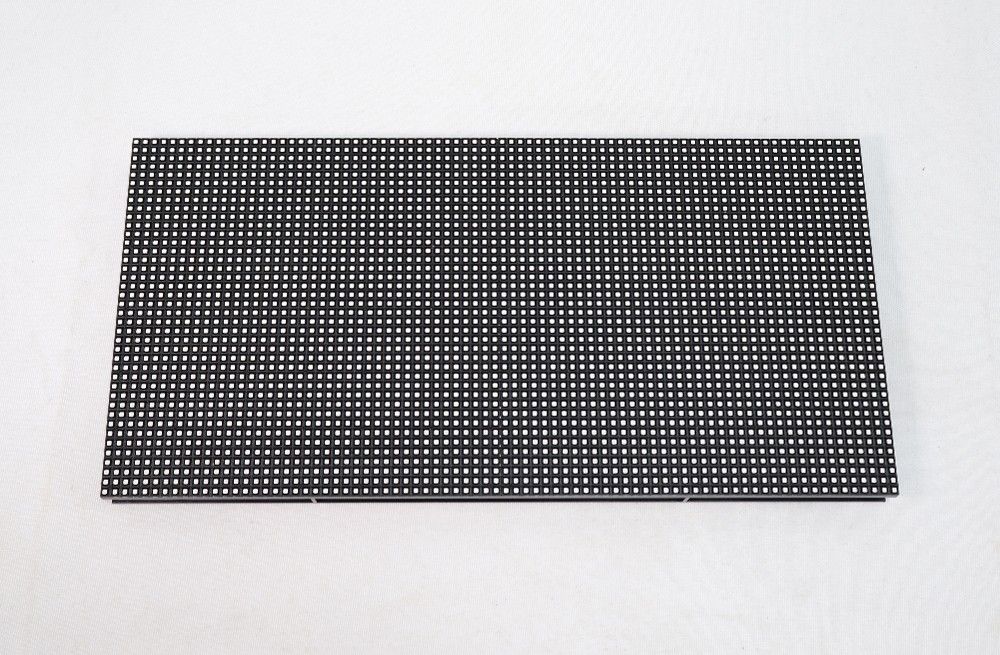

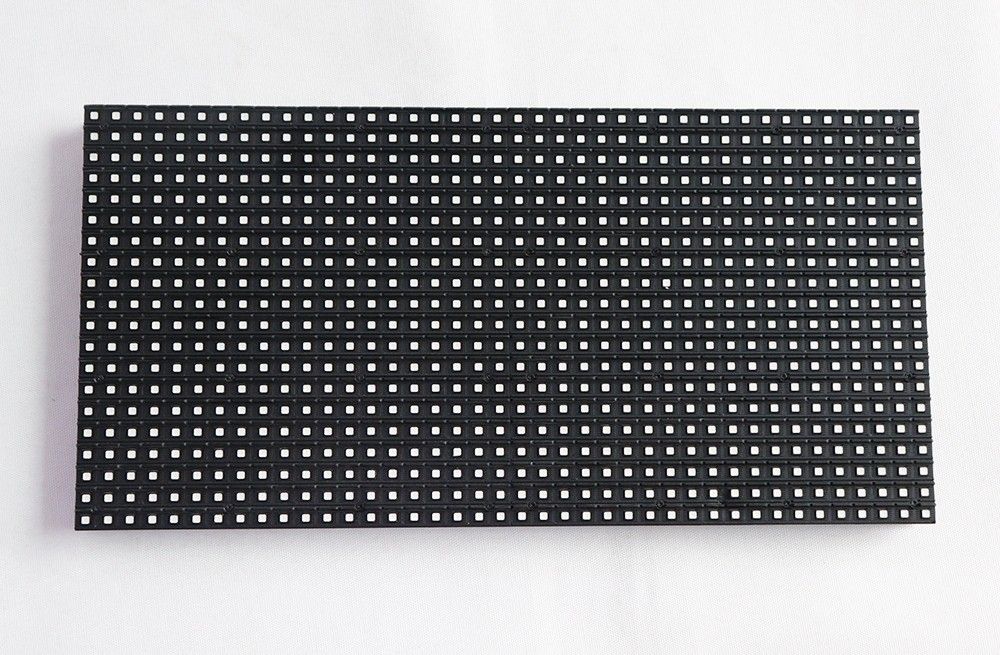

P4 320x160mm Outdoor LED Wall Screen Module With High Resolution

Description P4 320x160mm Outdoor LED Wall Screen Module Parameter: LED Lamp Specification Color Package Intensity Viewing Angle Wavelength Testing Conditions Red SMD2525 450-600mcd 120° 620-625nm 25℃,20mA Green 1000-1400mcd 120° 516-530nm 25℃,20mA Blue 200-400mcd 120° 465-475nm 25℃,20mA Module Parameter Pixel Pitch 4mm Pixel Configuration SMD2525 Density 62,500 pixels/㎡ Module Resolution 64pixel(L) * 32pixel(H) Module Dimension 320mm(L) * 160mm(H) * 25mm(D) Driving Mode Constant current, 1/10 duty Module Mask Pure black mask—high contrast screen Electricity Parameter Optical Ratings Brightness ≥5,500 cd/㎡ Viewing Angle 120°(Horizontal)； 120°(Vertical) Best Viewing Distance ≥4m Gray Grade 14 bit Display Color 4.4 trillion colors Brightness Adjustment 100 grades by software or automatically by sensor Max. Power Consumption 46W Control System Frame Frequency 60Hz Refresh Frequency ≥1920Hz Input Signal Composite Video, S-video, DVI, HDMI, SDI, HD-SDI Control Distance 100m(Ethernet cable); 20KM(optical fiber cable) Support VGA Mode 800*600, 1024*768, 1280*1024, 1600*1200 Color Temperature 5000—9300 adjustable Brightness Correction Pixel by pixel, module by module, cabinet by cabinet Reliability Working Temperature -20～ 60 ºC Storage Temperature -30～ 70 ºC Working Humidity 10%～90% RH Lifetime 100,000 hours MTBF 5000 hours Continuous Operating Time ≥72 hours Protection Grade IP65 Out-of-Control Pixel Rate ≤0.01%
