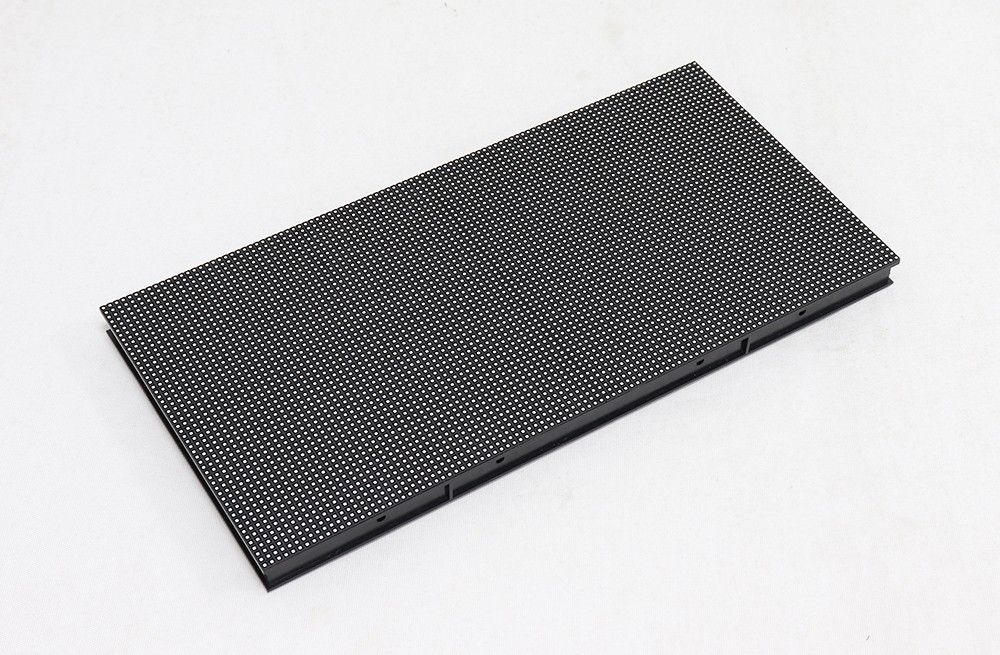

Outdoor P3.076 64X64dot 320x160mm LED Screen Display Module for Video Wall

Description Outdoor P3.076 64X64dot 320x160mm LED Screen Display Module Parameter: LED Lamp Specification Color Package Intensity Viewing Angle Wavelength Testing Conditions Red SMD1415 48mcd 120°/120° 622nm 25℃,8mA Green 155mcd 120°/120° 526nm 25℃,5mA Blue 20mcd 120°/120° 470nm 25℃,3mA Module Parameter Pixel Pitch 3.076mm Pixel Configuration SMD1415 Density 105,688 pixels/㎡ Module Resolution 104pixel(L) * 52pixel(H) Module Dimension 320mm(L) * 160mm(H) * 25mm(D) Driving Mode Constant current, 1/13 duty Electricity Parameter Optical Ratings Brightness ≥5,000 cd/㎡ Viewing Angle 120°(Horizontal)； 120°(Vertical) Best Viewing Distance ≥3m Gray Grade 14 bits Display Color 4.4 trillion colors Brightness Adjustment 100 grades by software or automatically by sensor Max. Power Consumption 40W Control System Frame Frequency ≥60Hz Refresh Frequency ≥1920Hz Input Signal Composite Video, S-video, DVI, HDMI, SDI, HD-SDI Control Distance 100m(Ethernet cable); 20KM(optical fiber cable) Support VGA Mode 800*600, 1024*768, 1280*1024, 1600*1200 Color Temperature 5000—9300 adjustable Brightness Correction Pixel by pixel, module by module, cabinet by cabinet Reliability Working Temperature -20～ 60 ºC Storage Temperature -30～ 70 ºC Working Humidity 10%～90% RH Lifetime 100,000 hours MTBF 5000 hours Continuous Operating Time ≥72 hours Protection Grade IP65 Out-of-Control Pixel Rate ≤0.01%
