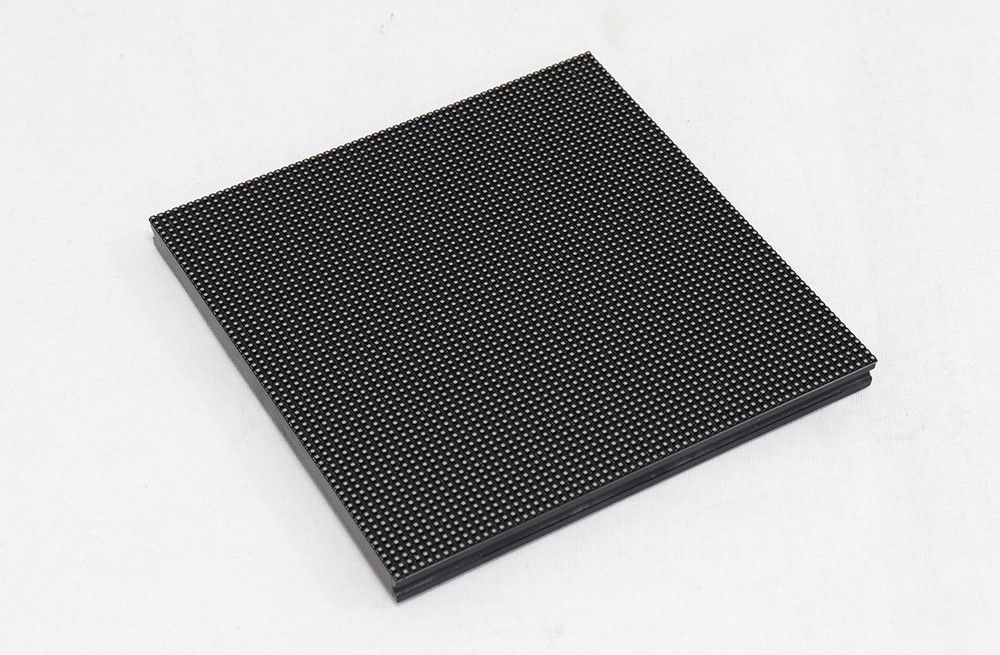

Indoor P3 1/32Scan 64x64dot 192X192mm LED Screen Video Module

Description Indoor P3 1/32Scan 64x64dot 192X192mm  LED Screen Module Indoor P3 1/32Scan 64x64dot 192X192mm LED Screen Module Specification: LED Lamp Specification Color Package Intensity Viewing Angle Wavelength Testing Conditions Red SMD2121 70-100 mcd 120 °/120° 620- 625nm 25℃, 20mA Green SMD2121 120-200 mcd 120 °/120° 515- 530nm 25℃, 10mA Blue SMD2121 30-40 mcd 120 °/120° 465- 475nm 25℃, 5mA Module Parameter Pixel Pitch 3mm Pixel Configuration SMD2121 Density 111,111 pixels/㎡ Module Resolution 64pixel(L) * 64pixel(H) Module Dimension 192mm(L) * 192mm(H) * 18mm(D) Driving Mode Constant current, 1/32 duty Electricity Parameter Optical Ratings Brightness ≥1,000 cd/㎡ Viewing Angle 120°(Horizontal)； 120°(Vertical) Best Viewing Distance ≥3m Gray Grade 14 bits Display Color 4.4 trillion colors Brightness Adjustment 100 grades by software or automatically by sensor Max. Power Consumption 19 W control system Frame Frequency ≥60Hz Refresh Frequency ≥960Hz Input Signal Composite Video, S-video, DVI, HDMI, SDI, HD-SDI Control Distance 100m(Ethernet cable); 20KM(optical fiber cable) Support VGA Mode 800*600, 1024*768, 1280*1024, 1600*1200 Color Temperature 5000—9300 adjustable Brightness Correction Pixel by pixel, module by module, cabinet by cabinet Reliability Working Temperature -20～ 60 ºC Storage Temperature -30～ 70 ºC Working Humidity 10%～90% RH Lifetime 100,000 hours MTBF 5000 hours Continuous Operating Time ≥72 hours Protection Grade IP31 Out-of-Control Pixel Rate ≤0.01%
