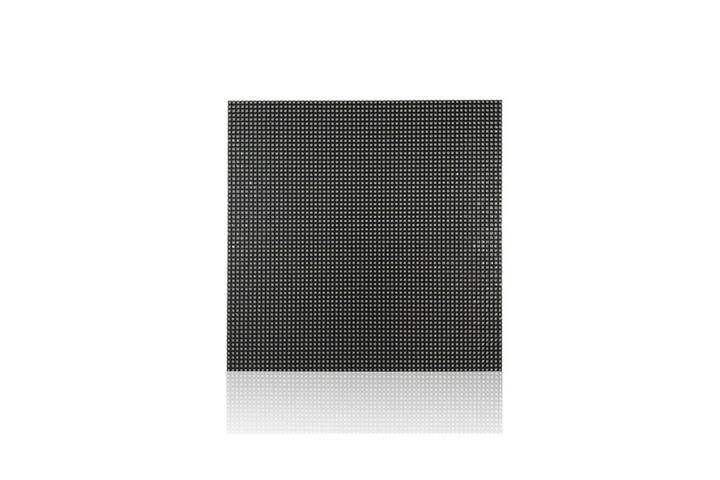

Indoor P2 HD LED Screen Module 256X128mm high resolution display wall

Description Indoor P2 HD LED Screen Module 256X128mm LED Lamp Specification Color Package Intensity Viewing Angle Wavelength Testing Conditions Red SMD1515 45-65mcd 120 °/120° 620-625nm 25℃, 10mA Green SMD1515 120-200mcd 120 °/120° 516-530nm 25℃, 5mA Blue SMD1515 20-40mcd 120 °/120° 465-475nm 25℃,5 mA Module Parameter Pixel Pitch 2mm Pixel Configuration SMD1515 Density 250,000 pixels/㎡(real pixel) Module Resolution 128pixel(L) * 64pixel(H) Module Dimension 256mm(L) * 128mm(H) * 18mm(D) Driving Mode Constant current, 1/32 duty Electricity Parameter Optical Ratings Brightness ≥1,200 cd/㎡ Viewing Angle 120°(Horizontal); 120°(Vertical) Best Viewing Distance ≥2m Gray Grade 14 bits Display Color 4.4 trillion colors Brightness Adjustment 100 grades by software or automatically by sensor Max. Power Consumption 40W control system Frame Frequency ≥60Hz Refresh Frequency ≥1920Hz Input Signal Composite Video, S-video, DVI, HDMI, SDI, HD-SDI Control Distance 100m(Ethernet cable); 20KM(optical fiber cable) Support VGA Mode 800*600, 1024*768, 1280*1024, 1600*1200 Color Temperature 5000—9300 adjustable Brightness Correction Pixel by pixel, module by module, cabinet by cabinet Reliability Working Temperature -20～ 60 ºC Storage Temperature -30～ 70 ºC Working Humidity 10%～90% RH Lifetime 100,000 hours MTBF 5000 hours Continuous Operating Time ≥72 hours Protection Grade IP31 Out-of-Control Pixel Rate ≤0.01% More Pictures of Indoor P2 HD LED Screen Module 256X128mm:
